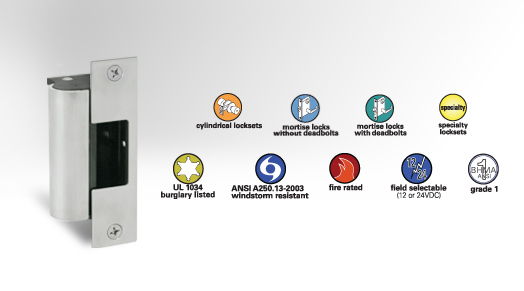

HES 1006 Electric Strike Body Without Faceplate

Product Description

HES 106 Electric Strike. The strongest, most versatile electric strike available

Part#1006-F-12/24D-630 - Fail Safe (locked when energized)

The 1006 series is the strongest and most versatile electric strike available. It meets or exceeds every standard developed for electric strikes. With 27 faceplate options, the 1006 can accommodate virtually every type of lockset on the market. The 1006 features a sleek keeper and 100% stainless steel cast case. Tested to exceed 3,000 lbs. of static strength, 350 ft. lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Dimensional Drawings

Specifications - Satin Stainless Finish (630)

• CAN4-S104(ULC-S104) fire door conformant
• ANSI A250.13-2003 windstorm listed
• UL 1034, burglary-resistant listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• MEA New York City accepted
• Florida Building Code approved
• Patents #6021038 & 6595564

Frame application

• Metal
• Wood

Electrical

• .45 Amps @ 12VDC continuous duty
• .25 Amps @ 24VDC continuous duty

Standard Features

• Stainless steel construction
• Tamper resistant
• Endurance 1,000,000 cycles
• Fail Safe
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Face plate not included
• Five year limited warranty
