Product Description
Padlockable
cam lock
The new C8010 has a cylinder length of 1-7/16"
for material thickness of up to 1-1/8."
The C8010 can accept padlocks with shackle up
to 3/8" in diameter (5/16" shackle is recommended).
APPLICATION:
For cabinet doors or drawers, lockers, anywhere padlocks
are used. For overlay application, the combined thickness
of front and frame cannot exceed the cylinder length.
OPERATION:
Choice of either 90° clockwise or counterclockwise
using rotation stop.
PACKAGING:
Supplied with FlexaCam spacers, mounting plate for
wood installation, one cam, detent washer, one rotation
stop and mounting hardware. Padlock NOT included.

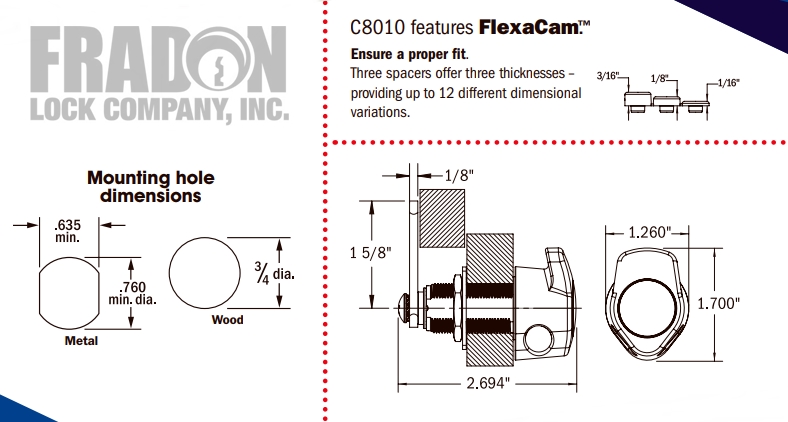

C8010 features FlexaCam™.
Ensure a proper fit.
Three spacers offer three thicknesses –
providing up to 12 different dimensional
variations.
